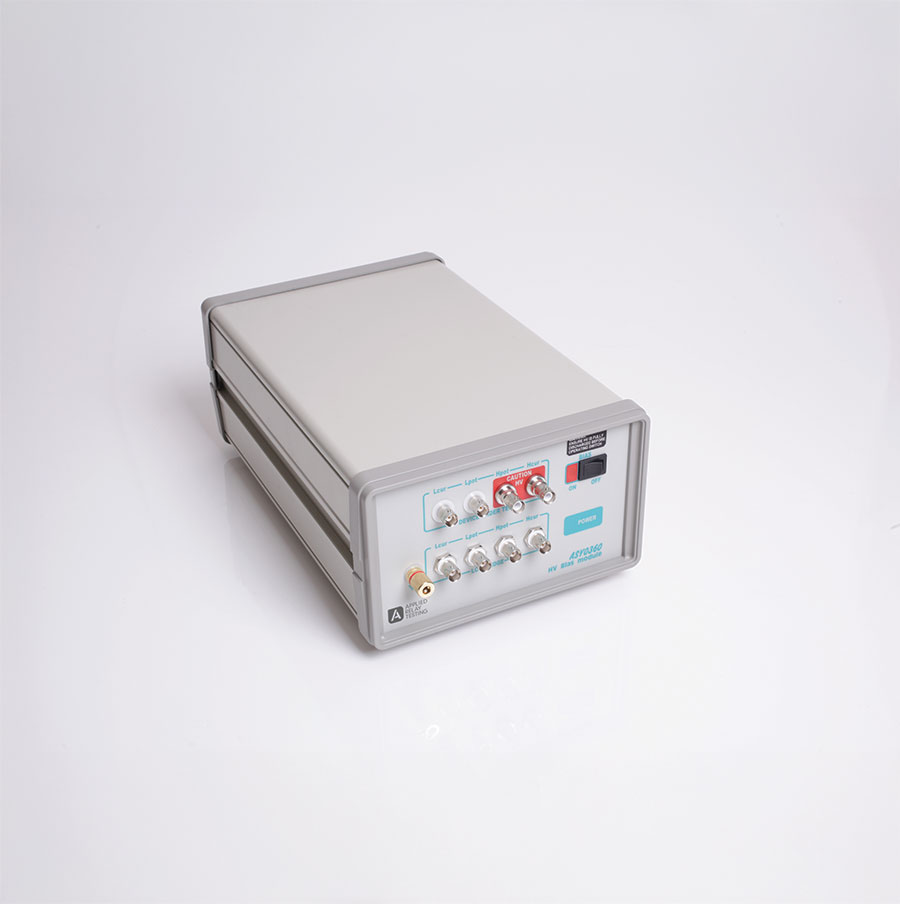

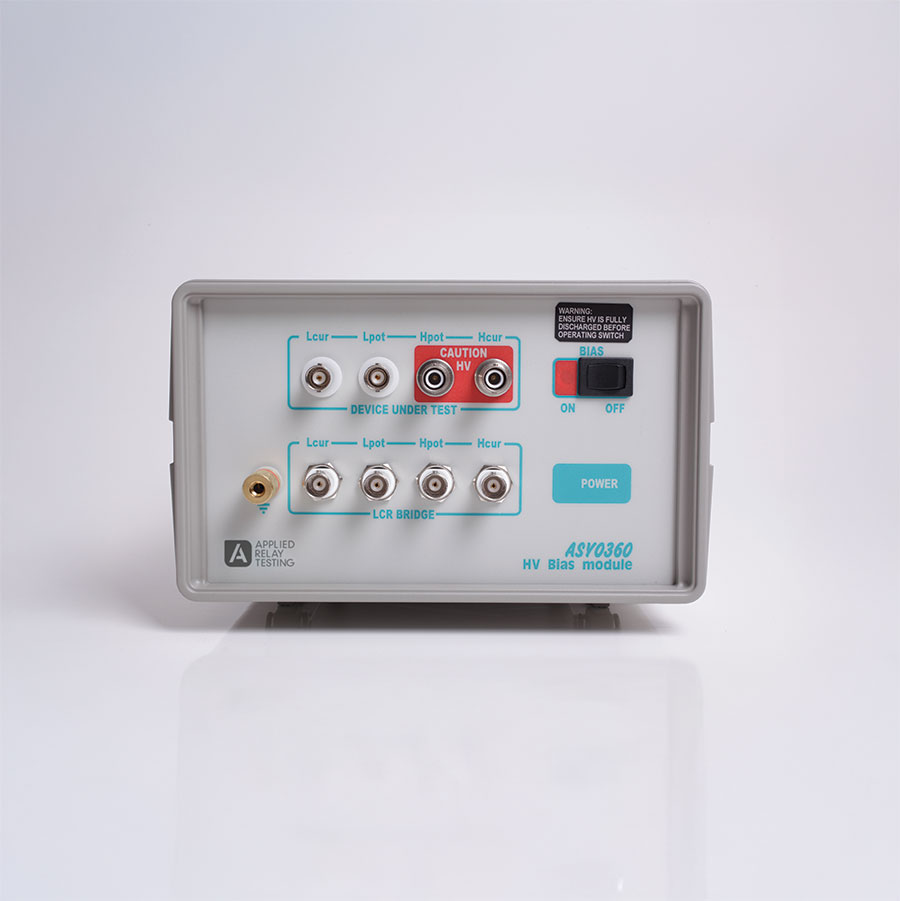

ASY0360 series – High Voltage Capacitor Bias Modules
The ASY0360 series adds HV DC bias capability to the DUT connection of capacitance / LCR meters when used with an external high voltage power supply.
- Applies bias voltage up to 2kV model ASY0360, up to 5kV model ASY0360-5 to DUT – requires external HV DC power supply.
- Bypass switch for straight through connection (ASY0360 only).
- Attenuated H.V. output monitor BNC.
- H.V. safety connectors (SHV) and flashing H.V. warning indicator for maximum operator safety.
- Integral fused power supply.
- Supplied with documentation and optional cabling.
