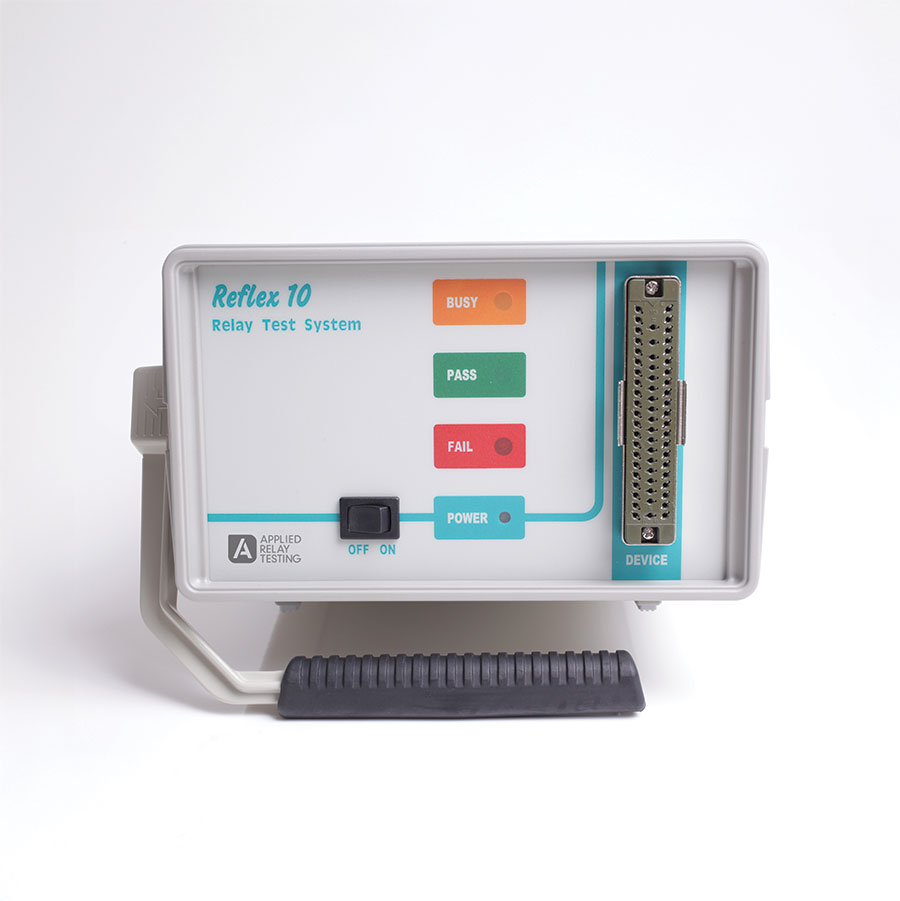

Reflex 10 – Low Cost Relay System
The Reflex 10 is one of a new range of relay test products that combine a flexible hardware architecture with advanced test software. Relay tests can be constructed within minutes and displayed using a very simple interface, making the system ideal for low-cost production applications.
- MIL-PRF-83536 compliant
- Tests single and dual DC coil relays
- Tests devices with up to 4 form C contacts at up to 28V/0.1A
- Performs all basic parametric relay tests
- Optional 0-30V/0-10A contact voltage drop unit ASY0700
- Option for relays with integral FET/transistor/timing pin
- Reed switch test option
- Simple operation for production testing
- Menu style programming.
- Full data logging
- Test program compatibility with RT290, Reflex 10M and 510.
- Automatic handler and solenoid-based test fixture support.
The ASY0700 adds programmable 0 – 30 Volt / 0 – 10 Amp contact load capability. View Product
