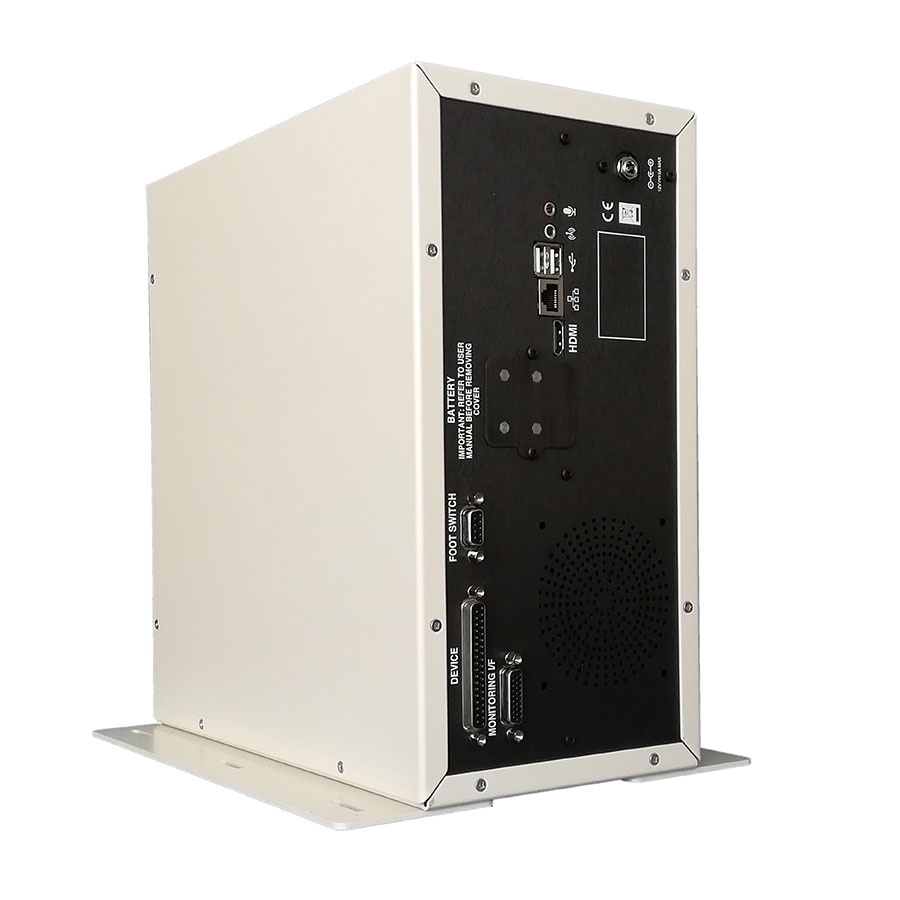

RAS 5 – Relay Adjust System
The RAS 5 is a compact stand alone relay adjust test system. Supplied with a touch screen monitor, operators can quickly and simply select and run pre-written test programs. A graphical operator page provides instant indication of the key coil and contact parameters. Optional foot pedals provide hands-free coil control to assist contact adjustment.
- Tests AC and DC coil relays both latching and non latching
- Tests devices with up to 6 form C contacts
- Performs all basic parametric relay tests
- Option for relays with integral FET/transistor control pin
- Simple touch screen operation
- Up to 4 foot pedals for hands-free coil control.
- Stand alone Windows software provided for test program creation.
- Firmware flashable for test program enhancements.
